High performance HMIs for all automation needs
X2 pro includes a wide range of high performance industrial panels from ultra-compact 4-inch to 21-inch panels designed for demanding applications. All with the high performance of powerful ARM Cortex-A9 processors, the latest screen technology and a wide range of connectivity options to cover all your automation needs.

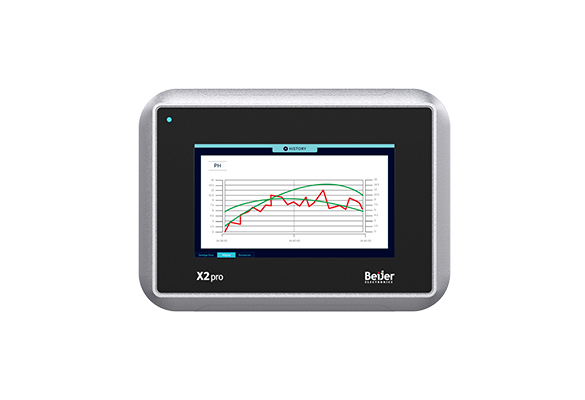

X2 pro 4
480 × 272 pixel (16:9).
TFT-LCD touch screen
1.5 GB application memory

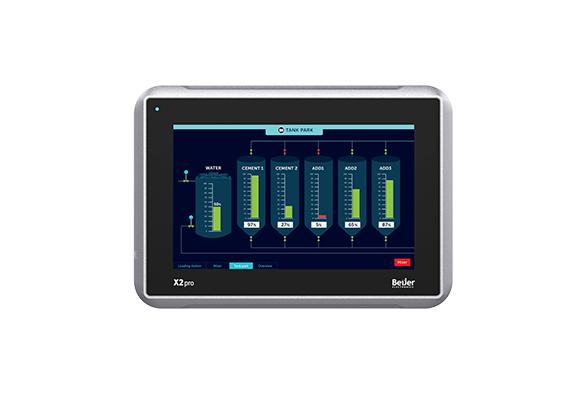

X2 pro 7
800 × 480 pixel (16:9)
TFT-LCD touch screen
1.5 GB application memory

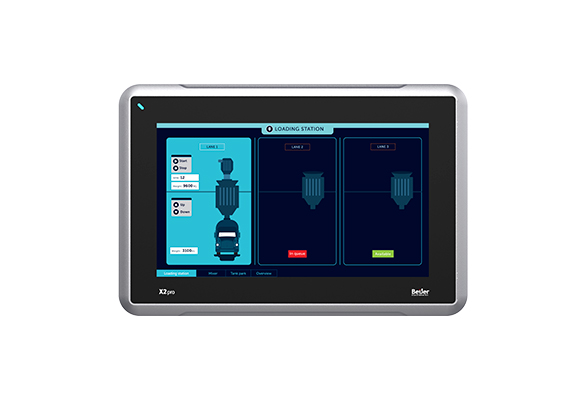

X2 pro 10
1024 × 600 pixel (16:9)
TFT-LCD touch screen
1.5 GB application memory

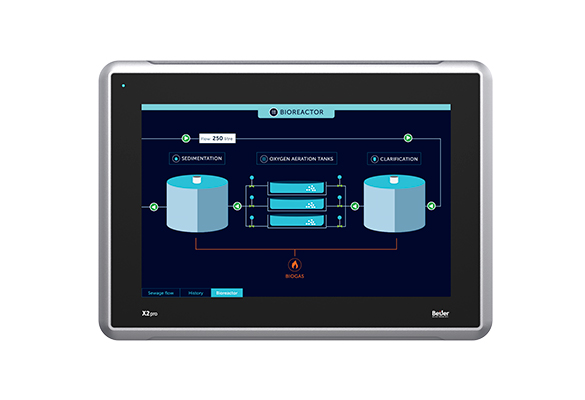

X2 pro 12
1280 × 800 pixel (16:10)
TFT-LCD touch screen
1.5 GB application memory

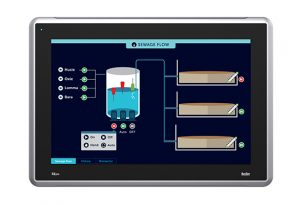

X2 pro 15
1280 × 800 pixel (16:10)
TFT-LCD touch screen
1.5 GB application memory

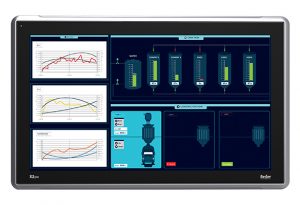

X2 pro 21
Full 1920 × 1080 pixel HD resolution (16:9)
TFT-LCD touch screen
1.5 GB application memory
Powerful ARM Cortex-A9 processor
Powerful single or dual core ARM Cortex-A9 processor delivers fast screen changes and program execution in demanding applications.
Robust aluminum housing
Robust aluminum housing with IP65, NEMA 4X/12 and UL Type 4X/12 front. Resistant to direct rain, snow or wash-downs, dirt, grime and dust.
Wide operating temperature
The wide -10°C to +60°C operating temperature range satisfies the demands of most industries.
UL, CE, FCC and KCC certificates
The entire X2 range offers a strong standard certification with UL, CE, FCC and KCC certificates.
Marine certifications
The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations.
Fast forward engineering with WARP
Create integrated HMI, control, drives and data communication solutions with WARP Engineering Studio. WARP automatically configures all hardware, software and communication in your application.
Wide screen format
X2 panels offer wide screen format, designed to succeed the traditional 4:3 square aspect ratio.
CiX CAN, Profibus and MPI module
It’s easy to interface with controllers using optional CiX CAN, Profibus or MPI modules.
